Geochemical Mapping

MinexPy's mapping workflow is organized into four steps:

1. prepare: load and clean point data, apply projection, and optional value transform.
2. create_grid: create a regular mesh and interpolation nodes.
3. interpolate: estimate a continuous surface on the mesh.
4. plot_map / viz: compose a final map with cartographic elements.

Step 1: Prepare Point Data

Use prepare to validate columns, coerce numeric values, drop invalid rows, and produce canonical mapping columns.

import pandas as pd
from minexpy.mapping import prepare

df = pd.DataFrame(
    {
        "lon": [44.10, 44.18, 44.22, 44.05, 44.28],
        "lat": [36.55, 36.61, 36.49, 36.70, 36.64],
        "Zn": [35.0, 48.0, 42.0, 30.0, 55.0],
    }
)

prepared, meta = prepare(
    data=df,
    x_col="lon",
    y_col="lat",
    value_col="Zn",
    source_crs="EPSG:4326",
    target_crs="EPSG:3857",
    value_transform="log10",
)

prepare supports:

• pandas.DataFrame
• .csv file paths
• .xls / .xlsx file paths

Output columns in prepared:

• x, y: projected coordinates
• value_raw: original numeric concentration
• value: working concentration (possibly transformed)

If duplicate coordinates exist, MinexPy warns and drops duplicates (keep-first) when drop_duplicate_coordinates=True.

Step 2: Create Grid

Use create_grid to construct the base interpolation mesh.

from minexpy.mapping import create_grid

grid = create_grid(
    data=prepared,
    cell_size=200.0,
    x_col="x",
    y_col="y",
    padding_ratio=0.05,
)

The returned GridDefinition contains:

• raw extent and padded extent
• xi, yi axes
• Xi, Yi mesh arrays
• flattened grid_points for interpolation
• nx, ny, n_nodes

Step 3: Interpolate Surface

Use interpolate as a dispatcher or call method-specific functions directly.

from minexpy.mapping import interpolate

result = interpolate(prepared, grid, method="idw")

Available methods:

• nearest
• triangulation (kind="linear" or kind="cubic")
• idw (power, k, radius, eps)
• minimum_curvature (max_iter, tolerance, relaxation, mask_outside_hull)

All methods return InterpolationResult with:

• interpolated surface Z (ny x nx)
• valid_mask
• method parameters
• convergence diagnostics for minimum curvature

Step 4: Compose Final Map

Use plot_map (or alias viz) to build the final map figure.

from minexpy.mapping import plot_map

fig, ax = plot_map(
    prepared=prepared,
    prepare_metadata=meta,
    interpolation_result=result,
    title_parts={"what": "Zn (ppm) in Stream Sediments", "where": "Area X", "when": "2026"},
    cmap="viridis",
    show_contours=False,
    show_points=True,
    show_north_arrow=True,
    show_scale_bar=True,
    show_numeric_scale=True,
    show_coordinate_grid=True,
    show_neatline=True,
    crs_info={"projection": "Web Mercator", "datum": "WGS84", "units": "m"},
    footer="Author: MinexPy User | Organization: Geo Lab | Date: 2026-02-16",
)

By default, plot_map can run the whole pipeline from raw data if you pass cell_size and column names.

Cartographic Elements Included

• title (title or title_parts)
• colorbar legend
• north arrow
• scale bar
• numeric scale (1:n) for metric units
• CRS/projection/datum/zone/units block
• coordinate grid lines
• neatline (map frame)
• optional locator inset
• footer/credits text

Mixed Input Modes

You can pass raw and precomputed stages together. Downstream precomputed objects take precedence:

1. interpolation_result
2. grid
3. prepared
4. raw data

Ignored upstream arguments produce warnings.

Full One-Call Example

import pandas as pd
from minexpy.mapping import plot_map

df = pd.read_csv("stream_sediments.csv")

fig, ax = plot_map(
    data=df,
    x_col="longitude",
    y_col="latitude",
    value_col="Zn_ppm",
    source_crs="EPSG:4326",
    target_crs="EPSG:3857",
    value_transform="log10",
    cell_size=250.0,
    padding_ratio=0.08,
    method="minimum_curvature",
    interpolation_kwargs={"max_iter": 1500, "tolerance": 1e-4},
    title="Zn (ppm) in Stream Sediments - Area X",
    crs_info={"projection": "Web Mercator", "datum": "WGS84", "units": "m"},
    footer="Data sources: field campaign + lab assay",
)

Dataset Example (demo_data.csv)

The guide now uses a synthetic dataset as an example. Download the dataset: demo_data.csv

Dataset summary:

• rows: 64
• CRS: WGS 84 geographic coordinates (EPSG:4326)
• bounding box:
• west: 51.35
• east: 51.43
• south: 35.705
• north: 35.785

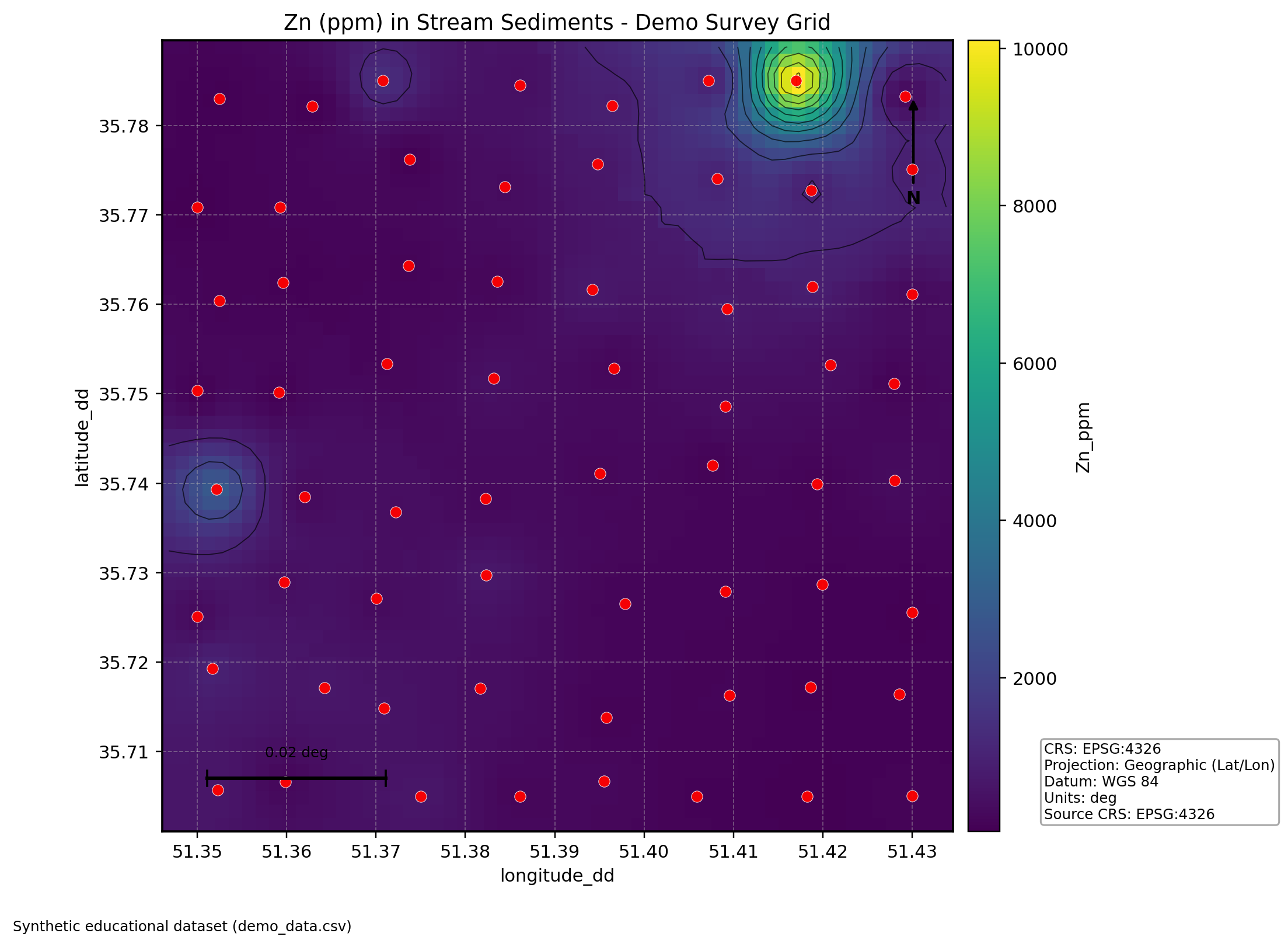

Zn Map Example (plot_map with IDW)

import pandas as pd
from minexpy.mapping import plot_map

df = pd.read_csv("demo_data.csv")

fig, ax = plot_map(
    data=df,
    x_col="longitude_dd",
    y_col="latitude_dd",
    value_col="Zn_ppm",
    source_crs="EPSG:4326",
    target_crs="EPSG:4326",
    cell_size=0.0015,
    padding_ratio=0.04,
    method="idw",
    interpolation_kwargs={"power": 2.0, "k": 12},
    title="Zn (ppm) in Stream Sediments - Demo Survey Grid",
    cmap="viridis",
    show_contours=True,
    contour_levels=10,
    show_points=True,
    point_size=40,
    point_alpha=0.95,
    point_color="red",
    show_numeric_scale=False,
    crs_info={"projection": "Geographic (Lat/Lon)", "datum": "WGS 84", "units": "deg"},
    footer="Synthetic educational dataset (demo_data.csv)",
)

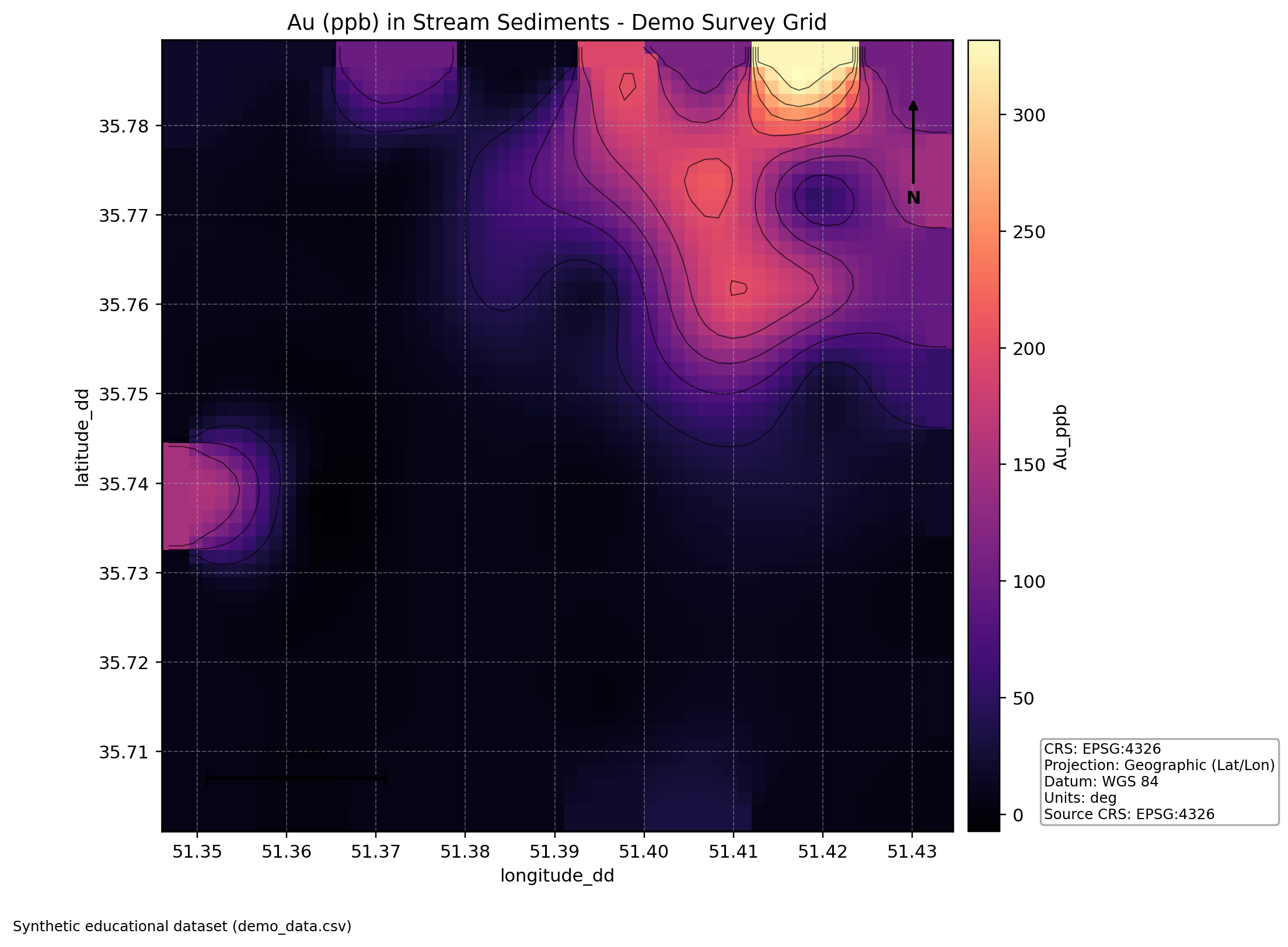

Au Map Example (plot_map with Minimum Curvature, no points)

import pandas as pd
from minexpy.mapping import plot_map

df = pd.read_csv("demo_data.csv")

fig, ax = plot_map(
    data=df,
    x_col="longitude_dd",
    y_col="latitude_dd",
    value_col="Au_ppb",
    source_crs="EPSG:4326",
    target_crs="EPSG:4326",
    cell_size=0.0015,
    padding_ratio=0.04,
    method="minimum_curvature",
    interpolation_kwargs={"max_iter": 2200, "tolerance": 1e-4, "relaxation": 0.2},
    title="Au (ppb) in Stream Sediments - Demo Survey Grid",
    cmap="magma",
    show_contours=True,
    contour_levels=10,
    show_points=False,
    show_numeric_scale=False,
    crs_info={"projection": "Geographic (Lat/Lon)", "datum": "WGS 84", "units": "deg"},
    footer="Synthetic educational dataset (demo_data.csv)",
)
