Statistical Foundations

This note explains the mathematical foundations behind the statistical functions exposed in minexpy.stats and the StatisticalAnalyzer class. It focuses on univariate sample statistics commonly used in geochemical exploration and environmental datasets.

Purpose and scope

• Provide clear formulas for each metric implemented in MinexPy.
• Clarify which estimators are used (sample vs. population) and how missing values are handled.
• Offer guidance on when each statistic is informative for geoscience data.

Data model and notation

• A dataset consists of observations with sample size n >= 2: $$ x_1, x_2, \ldots, x_n $$
• Sample mean: $$ \bar{x} = \frac{1}{n} \sum_{i=1}^{n} x_i $$
• This is the arithmetic average. It is sensitive to extreme values because every observation contributes equally to the sum.
• MinexPy drops NaN values before computation (matching NumPy/Pandas nan handling and SciPy's nan_policy='omit').
• Many functions allow specifying a degrees-of-freedom offset (ddof). The default ddof=1 yields unbiased sample estimators; ddof=0 yields population estimators. Use ddof=1 for field samples, and ddof=0 only when you truly have the full population.

Measures of central tendency

• Arithmetic mean (function: mean): $$ \bar{x} = \frac{1}{n} \sum_{i=1}^{n} x_i $$
• Best for roughly symmetric distributions without extreme outliers. Use it to summarize typical concentration levels.
• Median (function: median): sorted values follow the ordering below: $$ x_{(1)} \leq x_{(2)} \leq \dots \leq x_{(n)} $$ $$ \operatorname{median}(x) = \begin{cases} x_{(k)} & n = 2k-1 \ \frac{x_{(k)} + x_{(k+1)}}{2} & n = 2k \end{cases} $$
• The median is robust to outliers and skew. Prefer it for heavy-tailed or log-normal geochemical data.
• Mode: most frequent value in discrete samples (function: mode, returns value and count).
• Mode highlights the most common measurement. It is most useful for discrete classes or rounded lab results.

Measures of dispersion

• Sample variance (default): $$ s^2 = \frac{1}{n-1} \sum_{i=1}^{n} (x_i - \bar{x})^2, $$ implemented with variance(data, ddof=1); set ddof=0 for population variance.
• Variance measures spread in squared units. Higher variance means measurements are widely scattered around the mean.
• Sample standard deviation (function: std): $$ s = \sqrt{s^2} $$
• Standard deviation is the square root of variance and returns to the original units (e.g., ppm). It summarizes typical deviation from the mean.
• Range: $$ \operatorname{range} = x_{\max} - x_{\min} $$
• The range shows total spread but is very sensitive to outliers.
• Coefficient of variation (CV): a unitless measure of relative dispersion, $$ \operatorname{CV} = \frac{s}{\bar{x}}, $$ used when the mean is non-zero (function: coefficient_of_variation).
• CV compares variability between elements with different scales. Values under about 0.15 suggest low relative variability; values above about 0.5 suggest high relative variability.

Percentiles and interquartile range

• Percentiles (p-th): value denoted as q_p such that p percent of observations are less than or equal to it. MinexPy uses NumPy's percentile estimator (default linear interpolation) via percentile(data, p). $$ q_p = \operatorname{percentile}(x, p) $$
• Percentiles summarize distribution shape without assuming normality. They are useful for reporting regulatory thresholds or resource cutoff grades.
• Quartiles: $$ Q_1 = q_{25}, \quad Q_2 = q_{50} \; (\text{median}), \quad Q_3 = q_{75} $$
• Interquartile range (IQR) (function: iqr): $$ \operatorname{IQR} = Q_3 - Q_1 $$ IQR is robust to outliers and is often preferred for skewed geochemical distributions.
• IQR measures the spread of the middle 50% of values. It is less affected by a few extreme assays than the standard deviation.

Shape metrics

• Skewness (Fisher, bias-corrected): $$ G_1 = \frac{n}{(n-1)(n-2)} \sum_{i=1}^{n} \left( \frac{x_i - \bar{x}}{s} \right)^3, $$ implemented via scipy.stats.skew (function: skewness). Positive skew indicates a right tail; negative skew indicates a left tail.
• Skewness describes asymmetry. Right-skewed data often indicate a few high-grade samples in exploration datasets.
• Excess kurtosis (Fisher): $$ G_2 = \frac{n(n+1)}{(n-1)(n-2)(n-3)} \sum_{i=1}^{n} \left( \frac{x_i - \bar{x}}{s} \right)^4 - \frac{3(n-1)^2}{(n-2)(n-3)}, $$ implemented via scipy.stats.kurtosis with fisher=True (function: kurtosis). G2 = 0 for a normal distribution; G2 > 0 indicates heavier tails.
• Kurtosis captures tail weight. Heavy tails (positive kurtosis) suggest more extreme values than expected under a normal model.

Standardization and outlier detection

• Z-scores: standardize observations to units of standard deviation, $$ z_i = \frac{x_i - \bar{x}}{s} $$ computed with z_score. Common outlier rules use the thresholds below (assuming approximate normality): $$ |z_i| > 2 \quad \text{(liberal)} \qquad |z_i| > 3 \quad \text{(conservative)} $$
• Z-scores allow you to compare how unusual a value is relative to the sample. Large absolute z-scores flag potential anomalies for further QA/QC or domain review.

Correlation metrics

MinexPy's minexpy.correlation module provides several complementary dependence metrics because geoscience variables are often skewed, noisy, and not strictly linear.

• Pearson correlation (pearson_correlation): linear association $$ r_{xy} = \frac{\sum_{i=1}^{n}(x_i-\bar{x})(y_i-\bar{y})} {\sqrt{\sum_{i=1}^{n}(x_i-\bar{x})^2}\sqrt{\sum_{i=1}^{n}(y_i-\bar{y})^2}} $$

• Pearson is efficient for approximately normal, homoscedastic relationships but sensitive to outliers.

• Spearman correlation (spearman_correlation): Pearson correlation on ranks.

• When there are no ties, an equivalent form is: $$ \rho_s = 1 - \frac{6\sum_{i=1}^{n} d_i^2}{n(n^2-1)}, $$ where $d_i$ is the rank difference for pair $i$.

• Spearman is preferred for monotonic but nonlinear trends.

• Kendall correlation (kendall_correlation): concordance-based rank metric $$ \tau = \frac{N_c - N_d}{\binom{n}{2}} $$ where $N_c$ and $N_d$ are numbers of concordant and discordant pairs.

• Kendall is robust for ordinal structure and often stable in small samples.

• Distance correlation (distance_correlation): nonlinear dependence via centered pairwise distances.

• Let $A$ and $B$ be double-centered distance matrices for $x$ and $y$: $$ \mathcal{V}^2(x,y)=\frac{1}{n^2}\sum_{i,j}A_{ij}B_{ij}, \quad \mathcal{R}(x,y)=\frac{\mathcal{V}(x,y)}{\sqrt{\mathcal{V}(x,x)\mathcal{V}(y,y)}} $$

• Distance correlation can detect nonlinear relationships that Pearson can miss.

• Biweight midcorrelation (biweight_midcorrelation): robust correlation with outlier downweighting.

• Using median $M_x$ and MAD scale, define $$ u_i=\frac{x_i-M_x}{c\cdot MAD_x}, \qquad w_i=(1-u_i^2)^2 \text{ for } |u_i|<1, \text{ else } 0. $$
• The same is computed for $y$, then weighted centered values are correlated.

• This is useful for assay datasets with occasional extreme values.

• Partial correlation (partial_correlation): correlation after removing control-variable effects.

• If $r_x$ and $r_y$ are residuals from regressing $x$ and $y$ on controls $Z$, then: $$ r_{xy\cdot Z} = \operatorname{corr}(r_x, r_y) $$
• Useful for asking whether two elements remain associated after removing depth/lithology trends.

Comprehensive summaries

describe aggregates the above into a single dictionary containing: count, mean, median, standard deviation, variance, min, max, range, skewness, kurtosis, coefficient of variation, Q1, Q3, IQR, and any user-specified percentiles. StatisticalAnalyzer.summary applies describe column-wise for DataFrames and returns a tidy DataFrame.

Visualization diagnostics

The minexpy.statviz module supports the core graphics used to validate distributional assumptions, detect outliers, and inspect pairwise dependence in geoscience datasets.

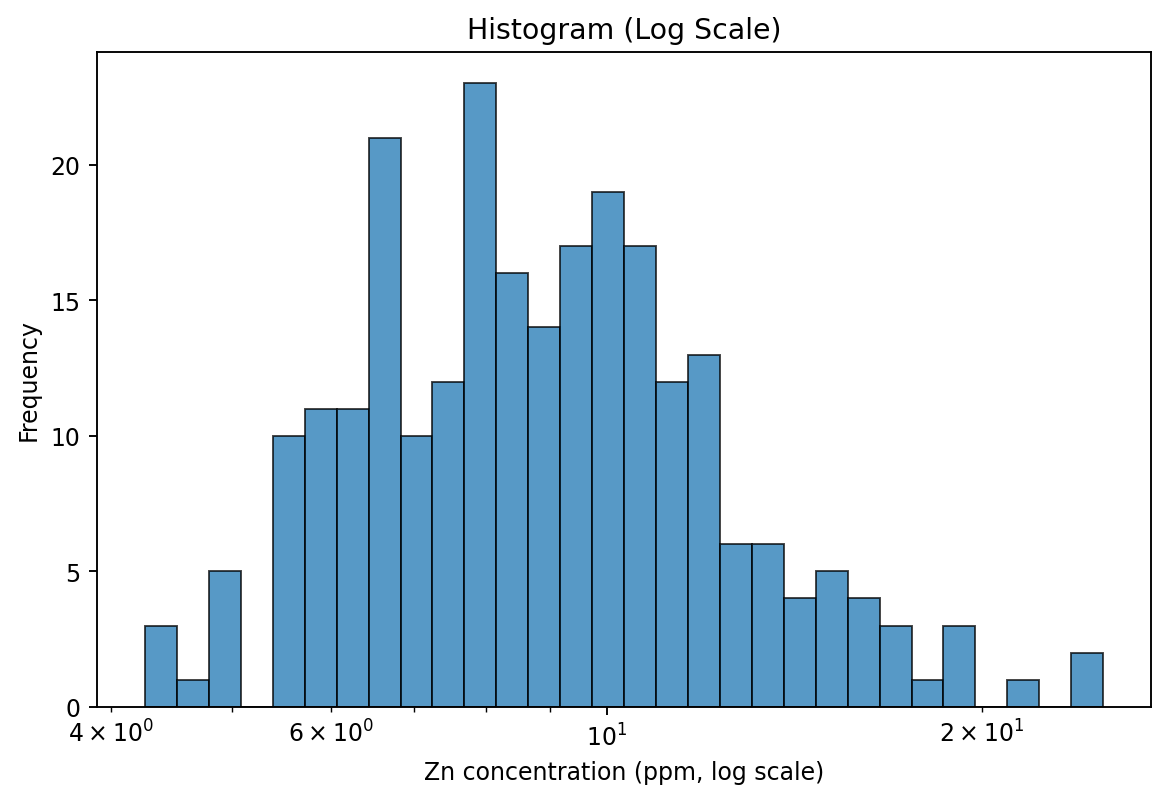

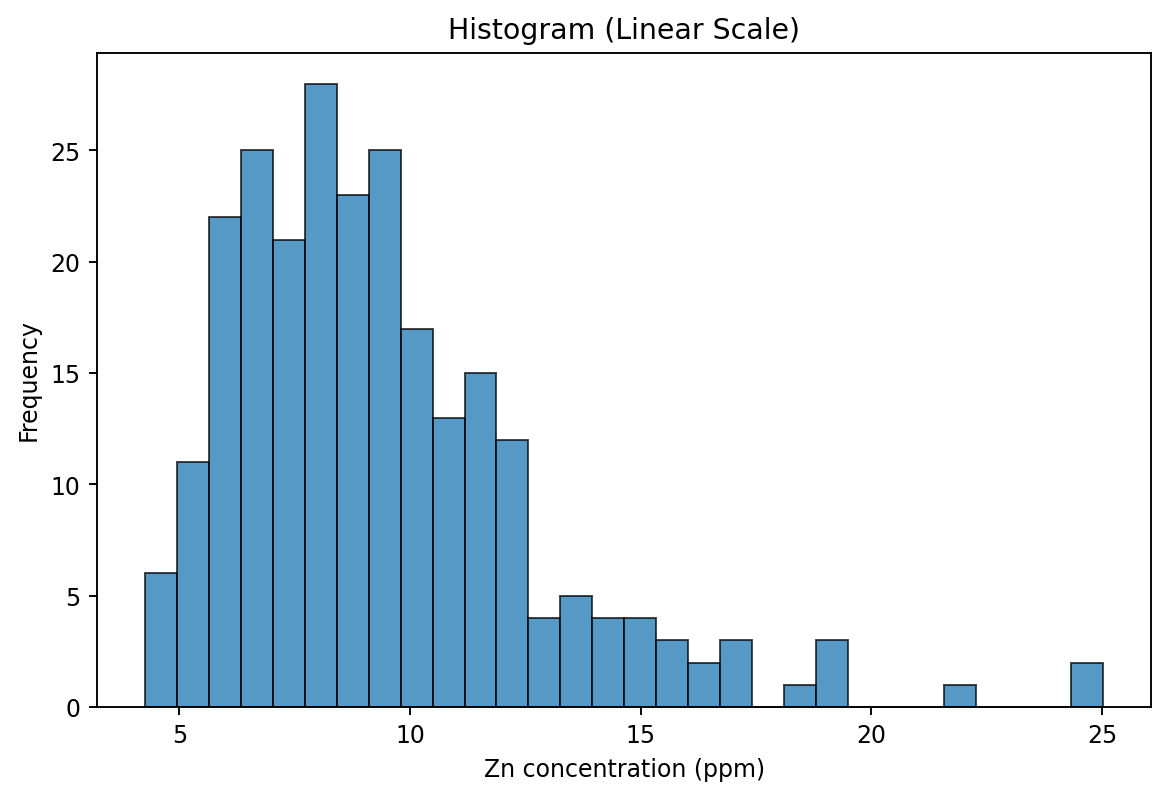

1. Histogram (Linear and Log)

plot_histogram visualizes the empirical distribution through bin counts (or densities). For a bin (B_j), the count is: $$ N_j = \sum_{i=1}^{n}\mathbf{1}(x_i \in B_j) $$ where (\mathbf{1}(\cdot)) is the indicator function.

If density=True, histogram bar heights approximate a probability density so that total bar area is near 1.

• Linear scale is appropriate when data are roughly symmetric or span a narrow range.
• Log scale is useful for right-skewed element concentrations (common in trace geochemistry), where multiplicative structure is better revealed on (\log x).

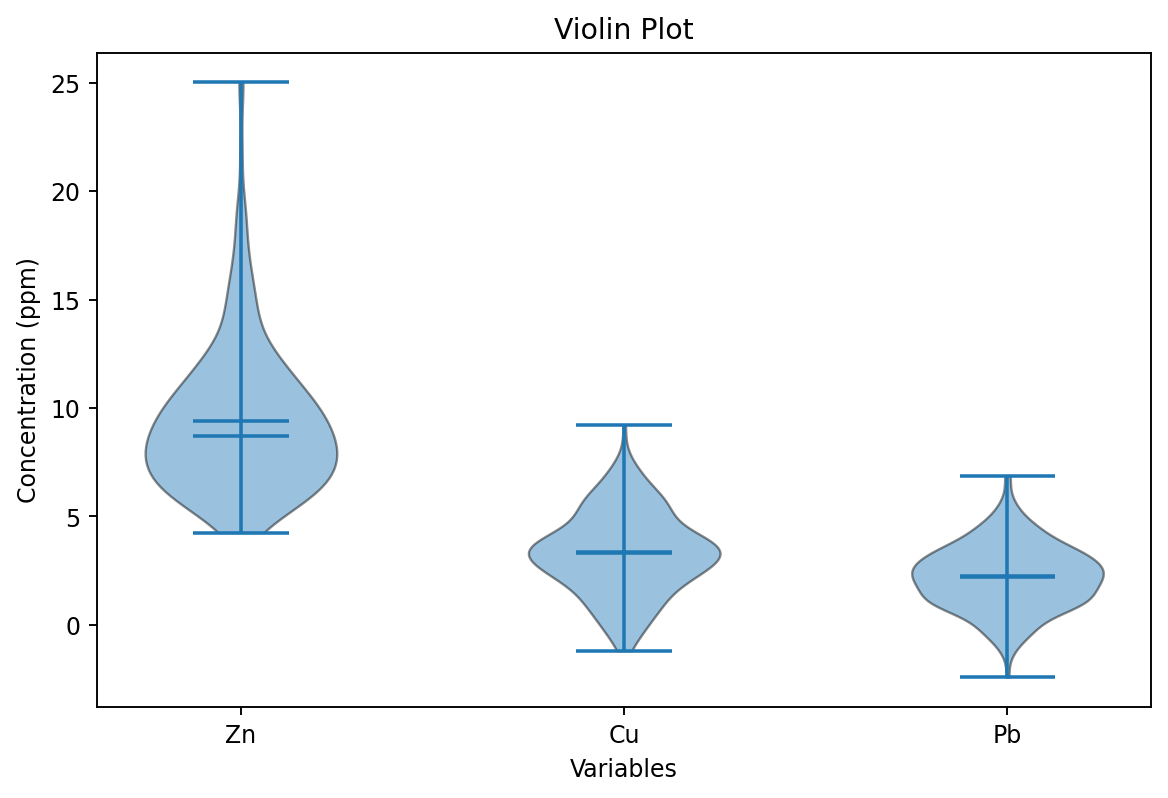

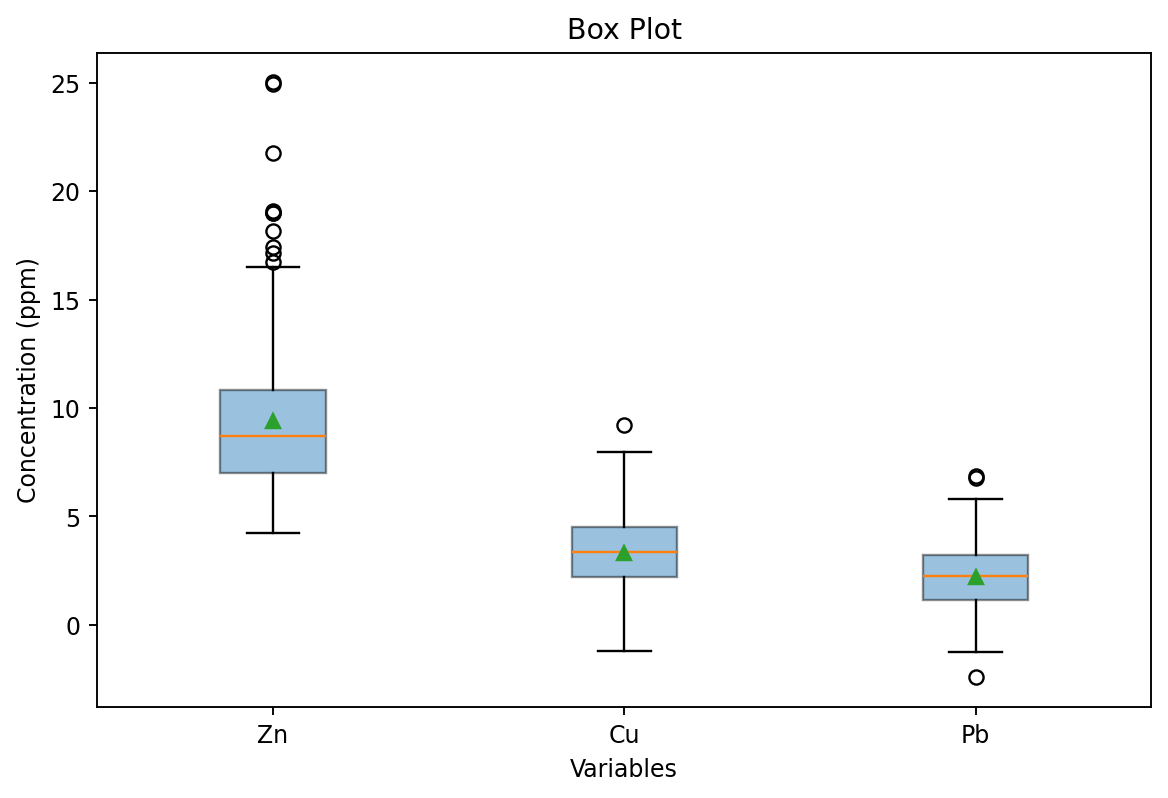

2. Box Plot and Violin Plot

plot_box_violin summarizes central tendency, spread, and distribution shape:

• Box plot uses quartiles (Q_1, Q_2, Q_3), with interquartile range $$ \operatorname{IQR} = Q_3 - Q_1 $$ and common whisker limits at: $$ Q_1 - 1.5\operatorname{IQR}, \quad Q_3 + 1.5\operatorname{IQR}. $$
• Violin plot shows a smoothed density estimate, usually via kernel density estimation (KDE): $$ \hat{f}(x) = \frac{1}{nh}\sum_{i=1}^{n} K!\left(\frac{x-x_i}{h}\right), $$ where (K) is the kernel and (h) is bandwidth.

Box plots are robust for comparing medians and outlier structure; violins provide richer shape information (multimodality, heavy tails).

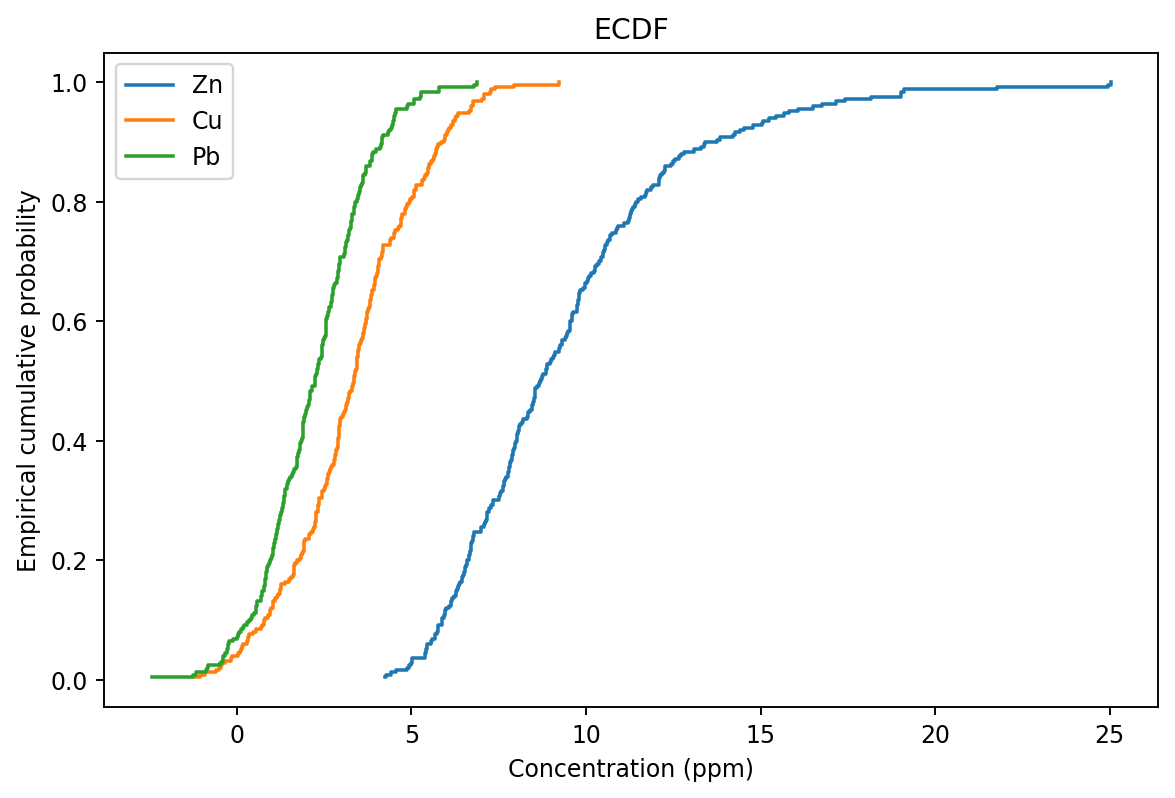

3. ECDF (Empirical Cumulative Distribution Function)

plot_ecdf provides a nonparametric cumulative view: $$ \hat{F}n(x) = \frac{1}{n}\sum(x_i \le x). $$}^{n}\mathbf{1

ECDFs are valuable for comparing variables or domains without binning choices. Differences in tail behavior are often more visible in ECDF than in histograms.

4. Q-Q Plot (Quantile-Quantile)

plot_qq compares sample quantiles to theoretical quantiles from a reference distribution: $$ \left(q^{(\text{theory})}_p,\; q^{(\text{sample})}_p\right), \quad p \in (0,1). $$

When points follow the 1:1 line, the chosen distribution is a reasonable model. Curvature indicates systematic mismatch:

• convex/concave patterns suggest skew or tail mismatch,
• tail departures suggest heavy/light tails relative to the reference model.

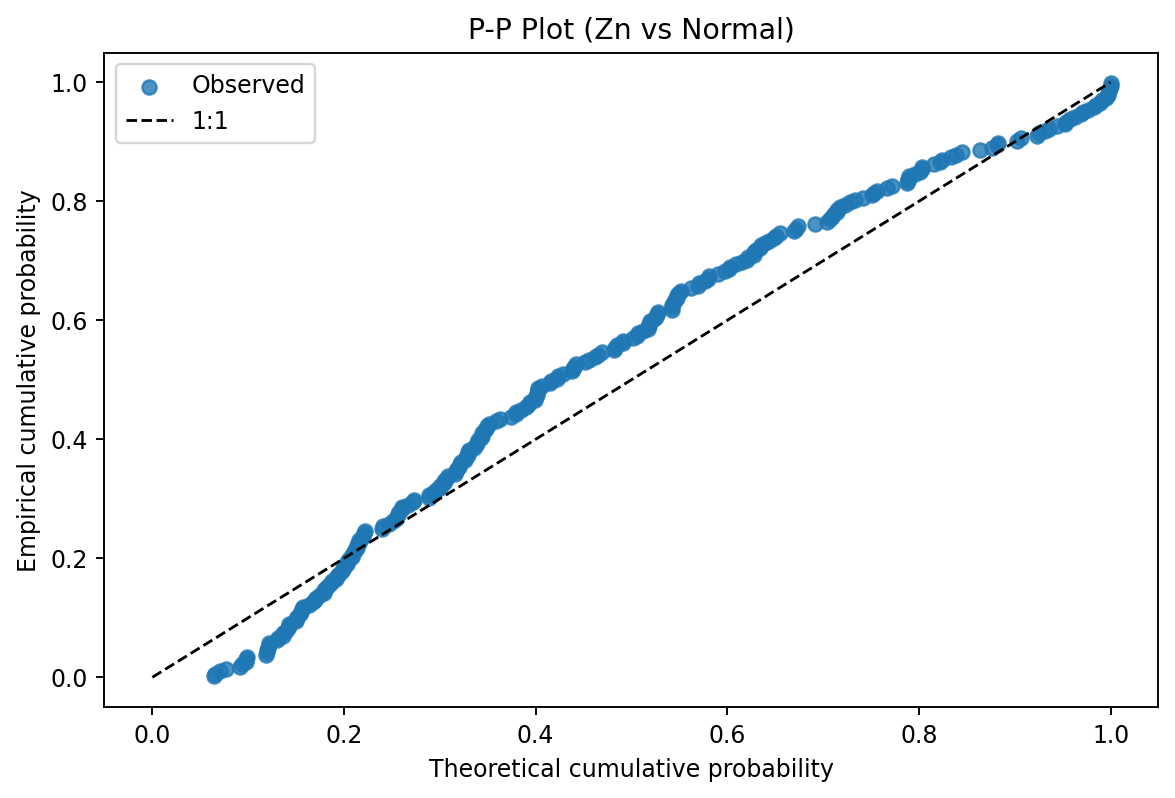

5. P-P Plot (Probability-Probability)

plot_pp compares cumulative probabilities: $$ \left(F_\theta(x_{(i)}),\; \frac{i-0.5}{n}\right), \quad i=1,\ldots,n $$ where (F_\theta) is the fitted/theoretical CDF and (x_{(i)}) are ordered observations.

P-P plots emphasize fit in the central distribution region, while Q-Q plots are usually more sensitive in the tails. Using both provides a more complete diagnostic.

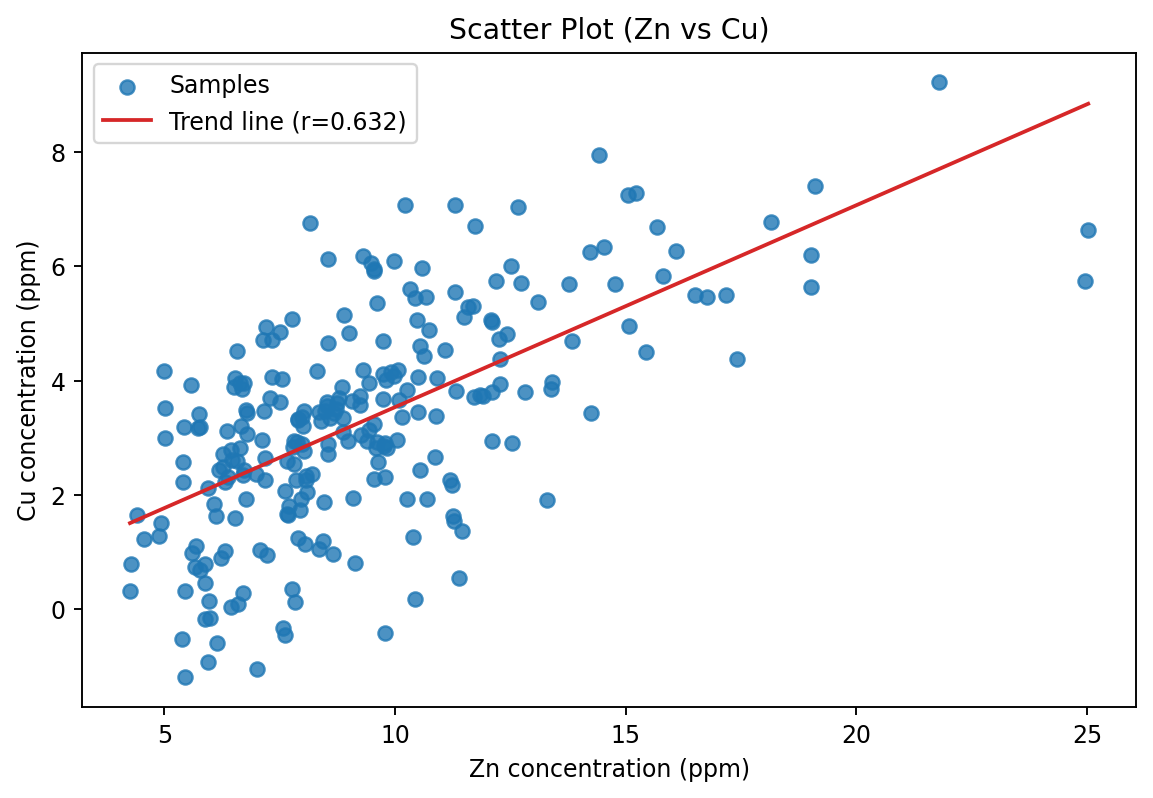

6. Scatter Plot with Trend Line

plot_scatter is used for pairwise relationship inspection: $$ (x_i, y_i), \quad i=1,\ldots,n. $$ With add_trendline=True, MinexPy overlays the least-squares line: $$ \hat{y} = \hat{\beta}0 + \hat{\beta}_1 x $$ where ((\hat{\beta}_0,\hat{\beta}_1)) minimize (\sum_i)^2).}^n (y_i-\hat{y

This plot is central for identifying linear trends, heteroscedasticity, clusters/sub-populations, and anomalous points before formal modeling.

All diagnostic plots should be interpreted jointly with summary statistics and geological context (sampling support, assay precision, compositional effects, and spatial dependence).

Implementation notes in MinexPy

• Libraries: NumPy (core array math), Pandas (DataFrame operations), SciPy (skewness/kurtosis estimators).
• Missing data: NaN values are removed before calculations (nan_policy='omit').
• Estimator choices: defaults favor sample estimators (ddof=1) to reduce bias when working with finite field samples.
• Return types: functional API returns Python floats/arrays; StatisticalAnalyzer returns Pandas Series/DataFrames for convenient downstream plotting or export.

Geoscience-specific considerations

• Log-normal tendencies: Element concentrations often follow log-normal or mixed distributions driven by multiplicative geological processes. Check skewness and, if right-skewed, assess the data on a log scale before applying z-score thresholds or comparing means.
• Relative variability: CV enables comparing dispersion across elements with very different absolute magnitudes (e.g., ppm vs. ppb). High CV in trace elements may reflect true geological variability or analytical noise—interpret alongside detection limits.
• Robustness and outliers: IQR-based fences and median statistics are usually more stable than mean/z-score for datasets with a few extreme assays (common in mineralized zones). Use robust stats to avoid chasing single-sample spikes.
• Compositional effects: Major oxides and some geochemical suites are closed to 100%. Classical statistics can be distorted by the constant-sum constraint. Consider log-ratio methods (clr/alr) before comparing elements on a closed basis.
• Censored and detection-limit data: Replace-with-half-dl is crude. Track how many values are below detection, and prefer methods that account for censoring when proportions are large.
• Spatial structure: Nearby samples are not independent. Summary stats ignore spatial correlation; for spatial decision-making, follow up with variography or kriging to respect spatial dependence.
• Sampling design and bias: Clustered sampling can overweight specific zones. When comparing groups (e.g., lithologies), ensure similar sample support or use weighted summaries if sample spacing differs.

References and further reading

1. NIST/SEMATECH. (2013). e-Handbook of Statistical Methods. https://www.itl.nist.gov/div898/handbook/
2. Virtanen, P., et al. (2020). SciPy 1.0: fundamental algorithms for scientific computing in Python. Nature Methods, 17, 261–272. https://doi.org/10.1038/s41592-019-0686-2
3. Reimann, C., & Filzmoser, P. (2000). Normal and lognormal data distribution in geochemistry: death of a myth. Chemosphere, 52(7), 787–793. https://doi.org/10.1016/S0045-6535(00)00321-5
4. Schuenemeyer, J. H., & Drew, L. J. (2011). Statistics for Earth and Environmental Scientists. Wiley. https://doi.org/10.1002/9780470650707
